LC-B Line spectral confocal 3D sensor
Product Features
● Fully autonomous line spectrum confocal 3D sensor
● High-precision dual-axis optical path design, parallel computing, high-speed scanning
 |  | ●High Efficiency：Self-developed sensing and computing integrated parallel computing architecture SOC, WYSIWYG, supports ultra-high-speed scanning ● High Precision：Self-developed high-precision dual-axis optical path design, using a 12-megapixel CMOS chip, to obtain higher imaging accuracy ● High Adaptability：Adaptable to smooth surfaces, complex surfaces, high-reflective materials, and transparent materials ● Easy to Integrate：Sensing and computing integration, high integration, plug and play ● Low Maintenance Cost：Remote parameter adjustment, remote SDK update |
Demonstration Diagram | ||
Product Introduction
Cross-Platform Applicability | ==> | Desktop 3D profilometer, automated 3D measurement equipment, 3DAOI | ||
Traditional Technology Products |
| Application Types | ||
①Structured Light 3D Camera ④Point Spectrum | <==substitute | | applications==> | ①Defect Detection ... |
Model | LC-B1855 | LC-B0733 | LC-B0410 |
Line Length (mm) | 18 | 6.6 | 4 |
Dot spacing (μm) | 8.8 | 3.2 | 2.0 |
Z-direction repetition accuracy(μm) | 0.2 | 0.15 | 0.08 |
Working Distance (mm) | 45 | 35 | 20 |
Range (mm) | 5.5 | 3.3 | 1 |
Data Point | 2048 | 2048 | 2048 |
Panoramic deep scan speed(Hz) | 3800 | 3800 | 3800 |
Angle Compatibility (deg) | ±15 | ±15 | ±15 |
Size (H x W x D)mm | 490*400*160 | 400*300*120 | 400*300*120 |
Weight (kg) | 17.5 | 12 | 10 |
Key words:
Advanced Packaging Wafer Ball Size Inspection
wafer (Back-End) applications: Advanced package wafer ball size inspection
Vehicle display module frame gap and segment difference measurement
Automotive electronics application: Vehicle display module frame gap and segment difference measurement

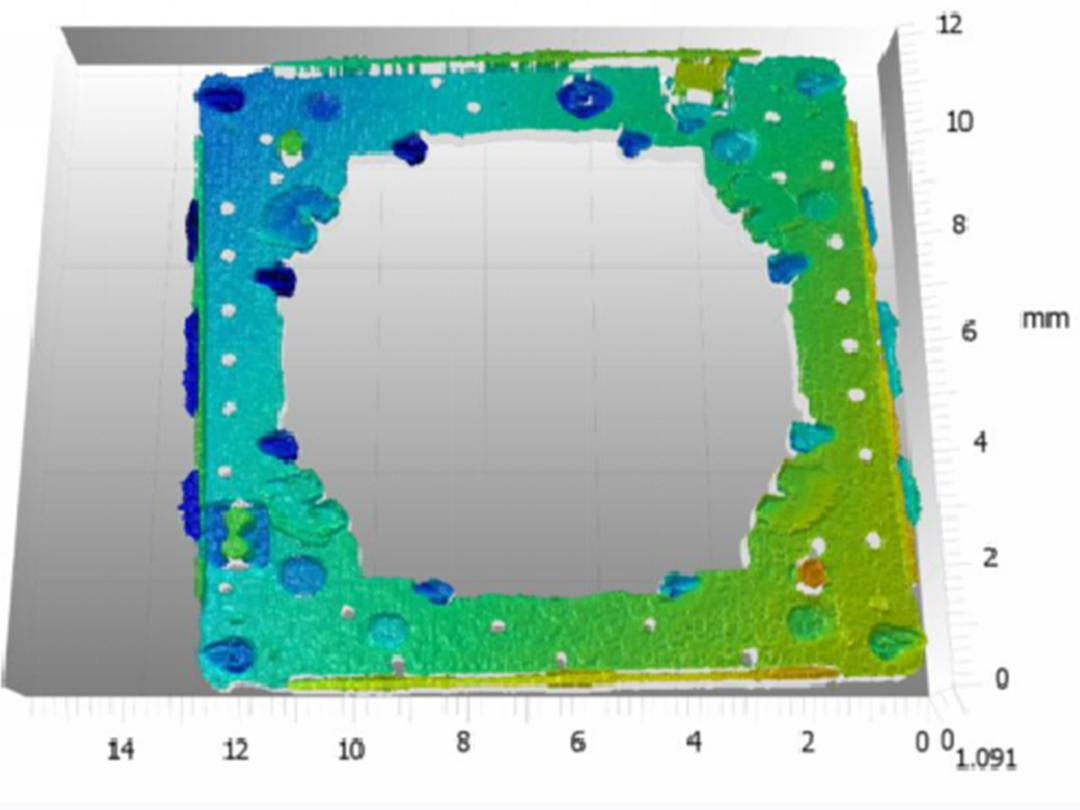

Camera module lighting module, chip surface and datum height difference
Camera module application: Camera module lighting module, chip surface and datum height difference

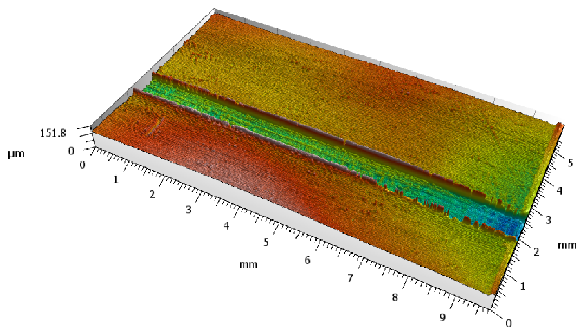

Flexible components precision machining slot height difference
3C, precision structural components application: Flexible components precision machining slot height difference
